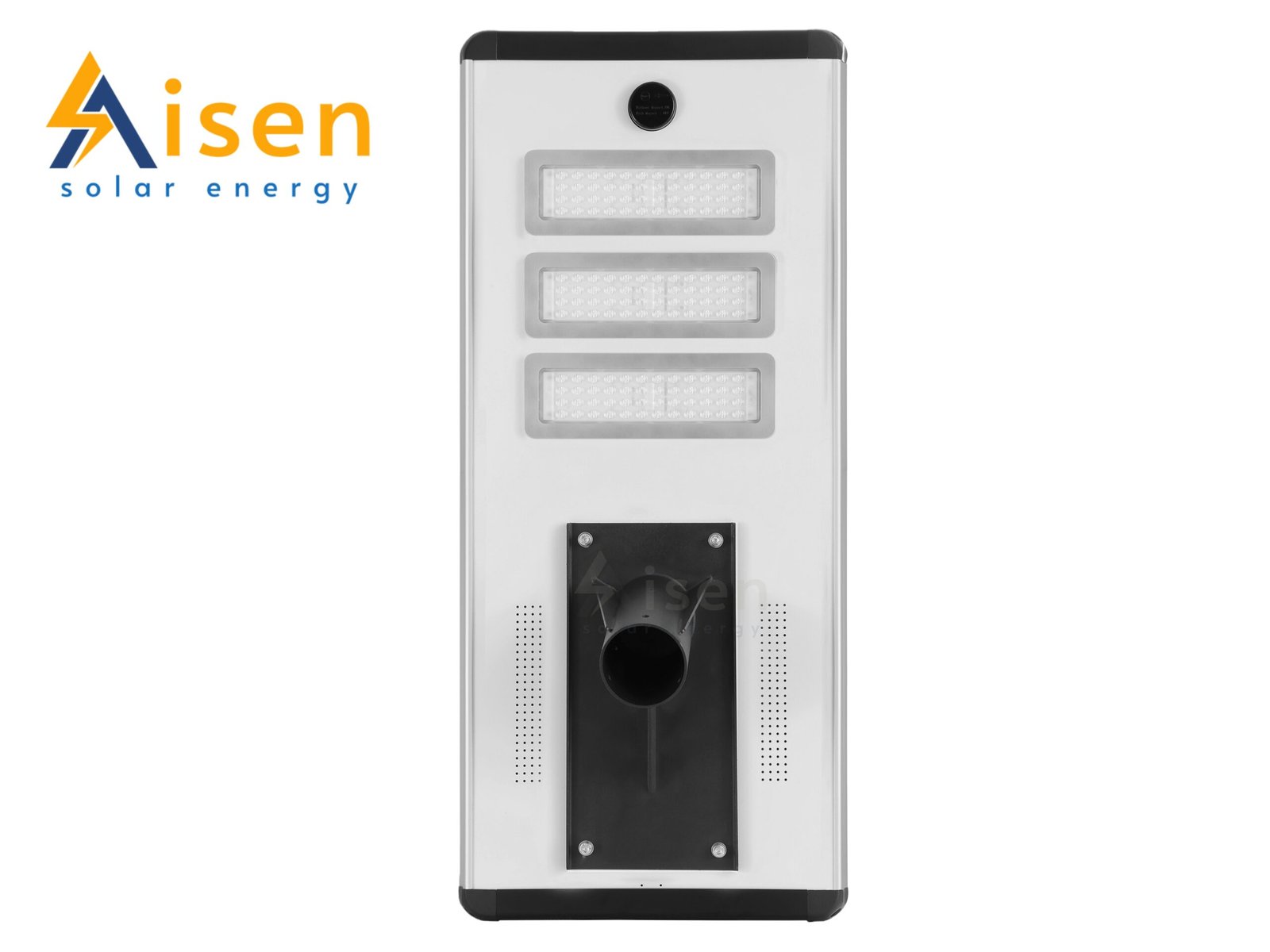

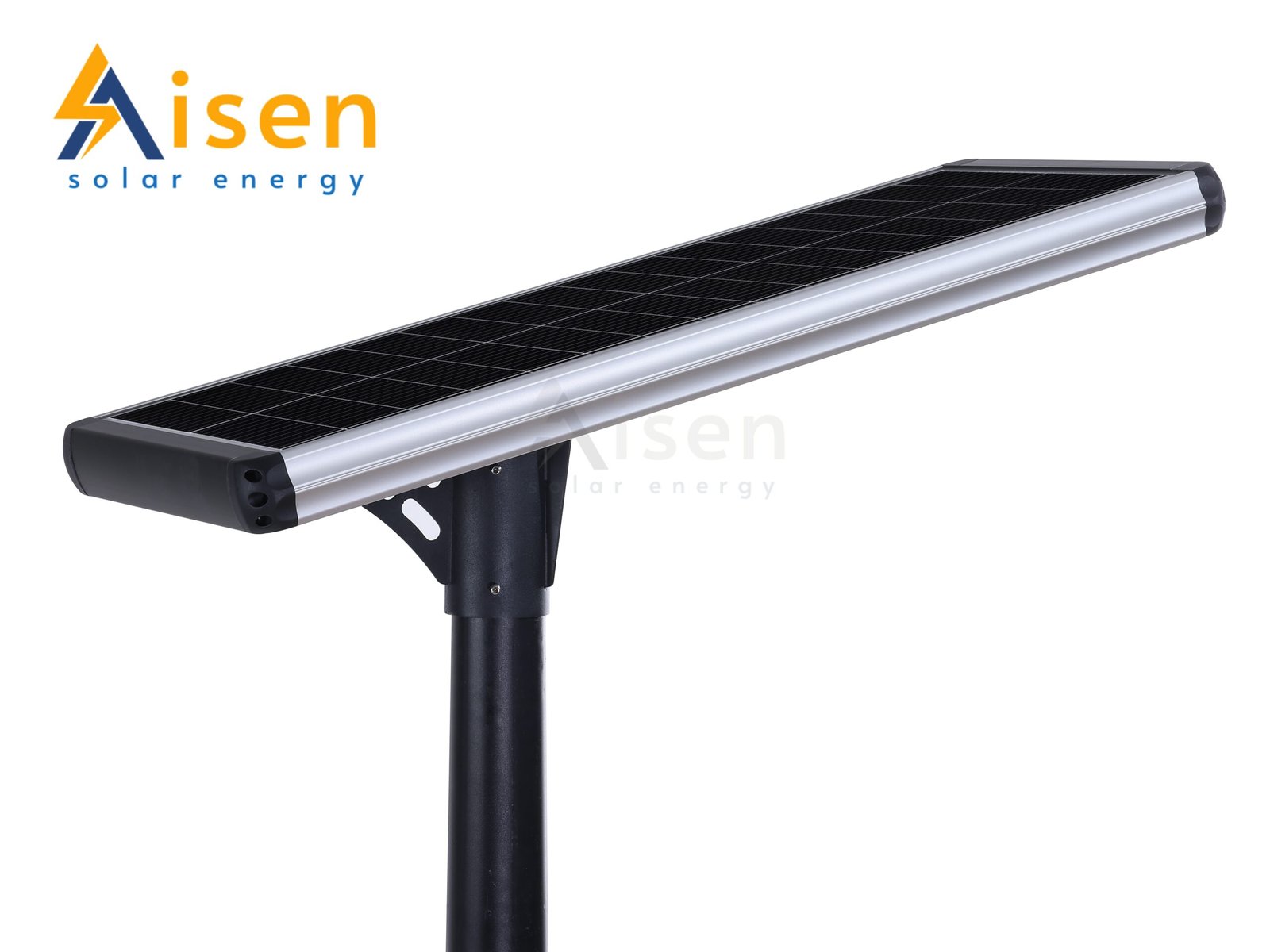

TG-60W All in one solar street light

Category

The TG-60W all-in-one solar street light is a mid-range outdoor lighting solution, featuring an 80W monocrystalline solar panel, 12.8V 30Ah LiFePO₄ battery, and Bridgelux 3030 LED chips. It provides bright, long-lasting illumination for medium-traffic roads, parking lots, and commercial areas, with intelligent control and remote operation.

Features

  • High Lumen LED: Bridgelux 3030 chips, 210lm/W super brightness, 100,000-hour lifespan.
  • Long-Life Battery: A-grade LiFePO₄ battery with >2000 deep cycles, 8-10 years lifespan, temperature protection (-25°C~65°C).
  • Efficient Solar Panel: 18V 80W monocrystalline panel with 21%-23% conversion rate, 25-year service life.
  • Intelligent MPPT Controller: Auto power allocation when battery ≤40%, temperature protection (disconnects at < -25°C or >65°C).
  • Patented Controller: Magnet switch + microwave motion sensor + battery/LED status indicators in one unit.
  • Remote Control: 433MHz remote (30m range, obstacle-penetrating), 4 lighting modes (L/T/M/U) + DEMO/OFF.
  • IP65 Waterproof: High-end aluminum alloy body, suitable for harsh outdoor environments.
  • Long Working Time: 12 hours/day lighting, supports 5-7 rainy/cloudy days (with motion sensor).
  • 5-Year Warranty: CE/ROHS certified, reliable after-sales support.

Application

  • Medium-Traffic Roads: Safe, energy-saving lighting for suburban roads.
  • Commercial Parking Lots: Reliable illumination for business areas.
  • School & Hospital Campuses: Safe lighting for public facilities.
  • Industrial Zones & Factories: Off-grid lighting for industrial areas.

Packing details

Packing & Weight Product size 940*410*60MM
Net weight 11KG
Gross weight 13KG
Packing size 1000*485*120MM/395*220*220MM
Qty/ctn 1set/ctn
Packing  neutral
Packs Containers 20GP 360sets
40GP 740sets
40HC 880sets

Warranty

5 years

Description

integrated solar street light 60W Item NO.:TG-60W
Solar panel Max power 18V 80W(Imported High Efficiency Monocrystalline Silicon)
Life time 25years
Battery Type LifePO4 Battery(12.8V 30AH)
Life time 8-10 years
LED Lamp                                                                                                                                                (with sensor) Max power 12V60W
led chip brand 144PCS Bridgelux chips3030
lumen (LM) 170LM/W
Life time 60000hours
Viewing Angle 140°*70°
Charge time by sun 6hours(Strong sunshine)
working Temperature range( ℃ ) -25℃—+65℃
colour temperature range(k) 6000K-6500K(customized)
mounting height range (m) 6-7M
space between light range (m) 20-25M
Install Pole diameter 70-76mm
Cloudy/Rainy days 5-7Cloudy/Rainy days
Lamps material of main aluminium alloy
Motion sensor Yes(Microwave Sensor)
with remote control or not Yes(1pc remote control per lot)
Certificate CE / ROHS / IP65
warranty period 5years
