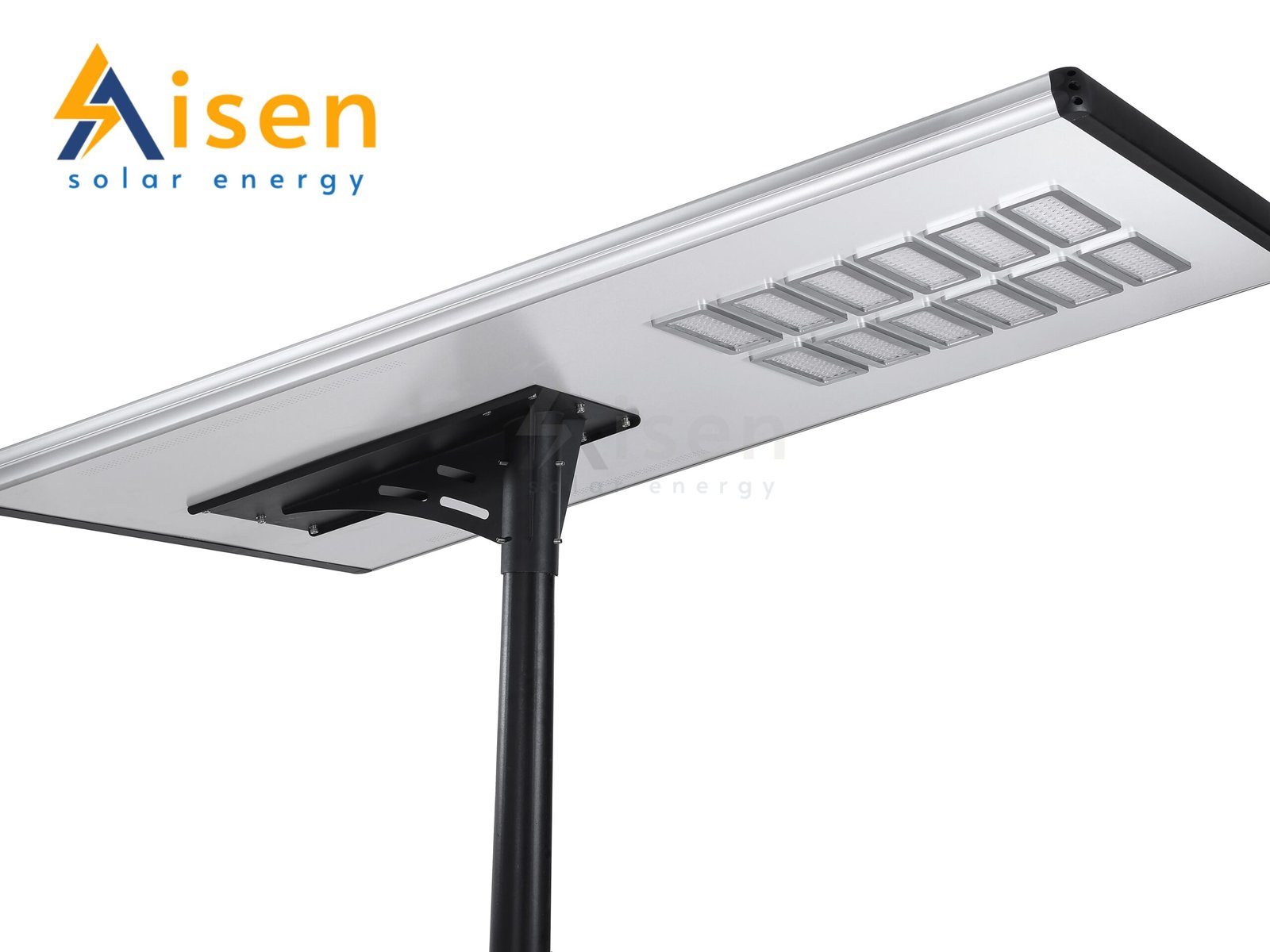

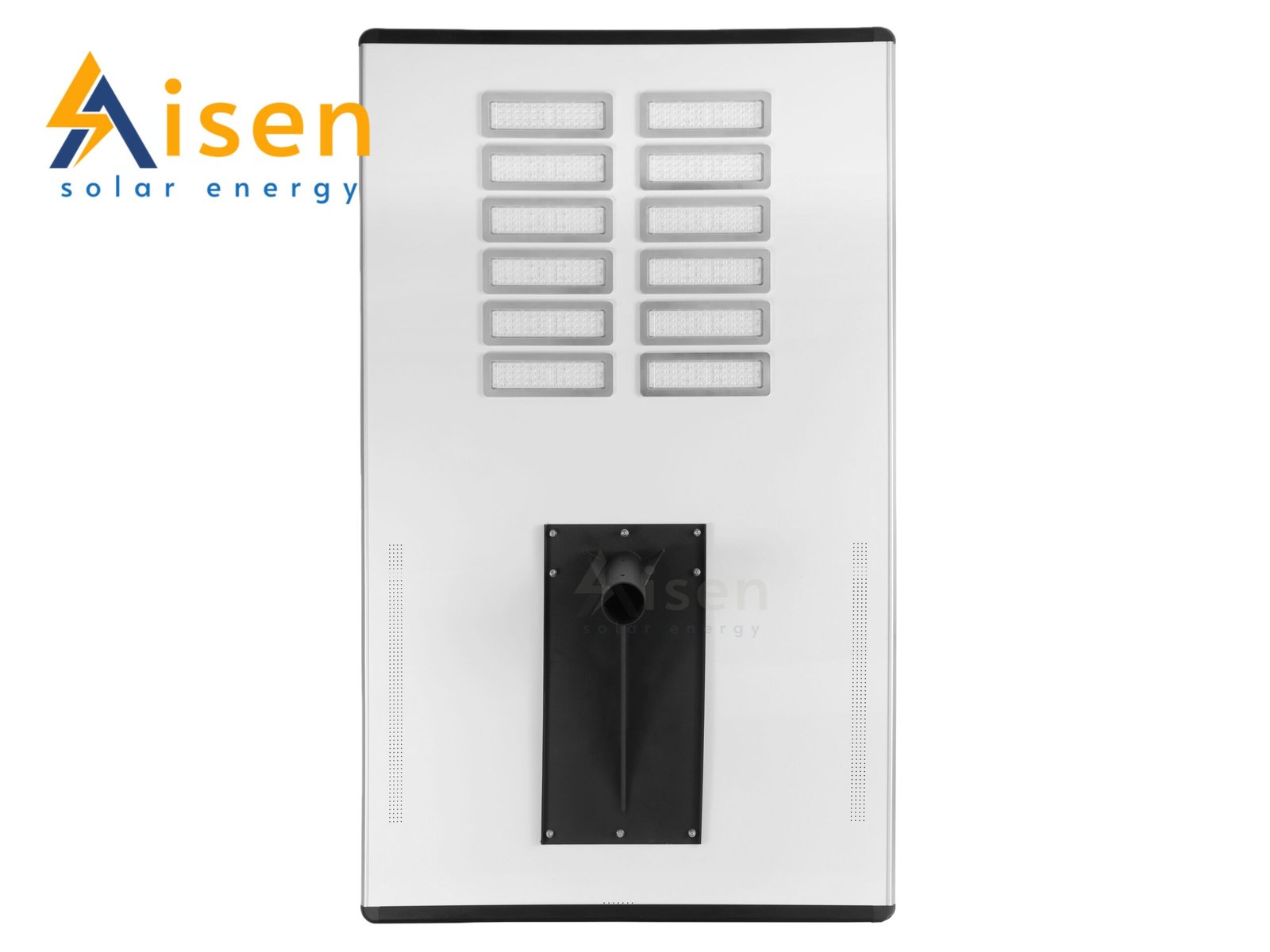

TG-400W All in one solar street light

Features

High Lumen LED: Bridgelux 3030 chips, 210lm/W super brightness, 100,000-hour lifespan.
Long-Life Battery: A-grade LiFePO₄ battery with >2000 deep cycles, 8-10 years lifespan, temperature protection (-25°C~65°C).

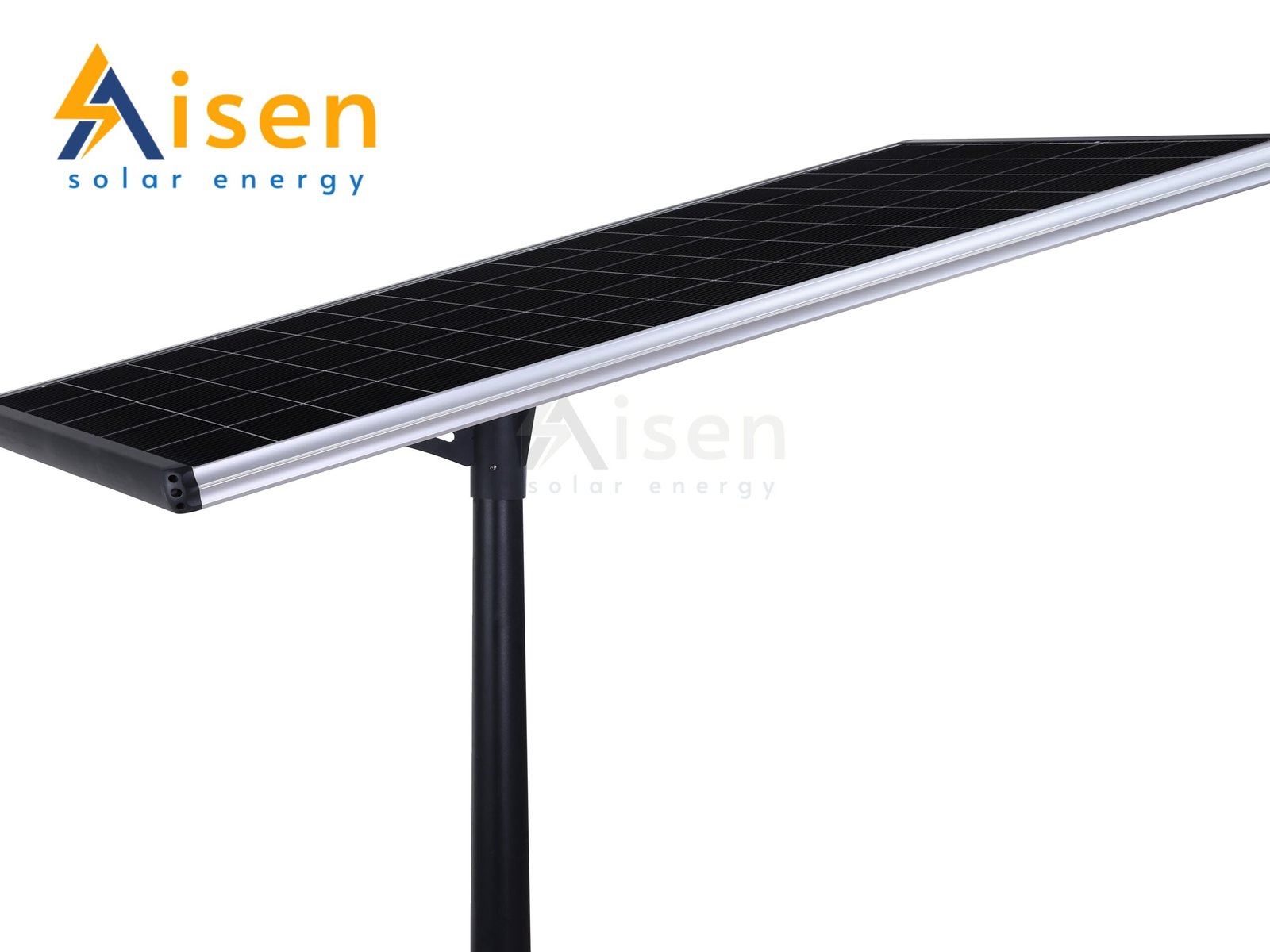

Efficient Solar Panel: 36V 430W monocrystalline panel with 21%-23% conversion rate, 25-year service life.
Intelligent MPPT Controller: Auto power allocation when battery ≤40%, temperature protection (disconnects at < -25°C or >65°C).
Patented Controller: Magnet switch + microwave motion sensor + battery/LED status indicators in one unit.
Remote Control: 433MHz remote (30m range, obstacle-penetrating), 4 lighting modes (L/T/M/U) + DEMO/OFF.
IP65 Waterproof: High-end aluminum alloy body, suitable for harsh outdoor environments.
Long Working Time: 12 hours/day lighting (without motion sensor).
5-Year Warranty: CE/ROHS certified, reliable after-sales support.

Highways & Expressways: Ultimate illumination for high-speed traffic areas.
Large Industrial Zones & Factories: Reliable off-grid lighting for heavy industrial areas.
Airport & Port Areas: Safe, energy-saving lighting for transportation hubs.
Mining & Construction Sites: Durable lighting for remote work sites.

5 years

integrated solar street light 400W		Item NO.：TG-400W
Solar panel	Max power	36V 430W(Imported High Efficiency Monocrystalline Silicon)
	Life time	25years
Battery	Type	LifePO4 Battery(25.6V 90AH)
	Life time	8-10 years
LED Lamp	Max power	24V400W
	led chip brand	576PCS Bridgelux chips3030
	lumen (LM)	170LM/W
	Life time	60000hours
	Viewing Angle	140°*70°
Charge time	by sun	6hours(Strong sunshine)
working Temperature	range( ℃ )	-25℃—+65℃
colour temperature	range(k)	6000K-6500K(customized)
mounting height	range (m)	10-12M
space between light	range (m)	35-40M
Install Pole diameter	70-76mm
Cloudy/Rainy days	5-7Cloudy/Rainy days
Lamps material of main	aluminium alloy
Motion sensor	No
with remote control or not	No
Certificate	CE / ROHS / IP65
warranty period	5years
