| Category |
Details |
| Model |

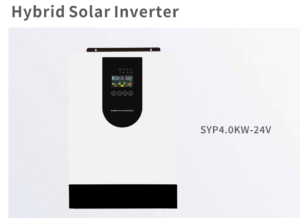

SYP4.0KW-24V |
| AC Input |
|
| Rated Input Voltage |
208 / 220 / 230 / 240V; L + N + PE |
| Voltage Range |
90–280±3V (normal mode); 170–280±3V (UPS mode) |
| Frequency |
50 / 60Hz (Auto Adaptive) |
| AC Output |
|
| Rated Capacity |
4.0kW |
| Surge Power |
7.2kVA |
| Voltage |
208 / 220 / 230 / 240VAC |
| Power Factor (PF) |
1 |
| Frequency |
50/60Hz±0.1% |
| Switch Time |
10ms (normal mode) / 10ms (UPS mode) |
| Wave Form |
Pure Sine Wave |
| Overload Protection |
60s@102%–110% load; 10s@110%–130% load; 3s@130%–150% load; 0.2s@>150% load |
| Max. Efficiency |
92.7%@24VDC (Battery Mode) |
| Charger (PV / AC) |
|
| Solar Charger Type |
MPPT |
| Max PV Input Current/Power |
18A / 5000W |
| MPPT Range |
40–450VDC |
| Max PV Open Circuit Voltage |
500VDC |
| Max PV Charge Current |
100A |
| Max AC Charge Current |
100A |
| Max. Charge Current (PV + AC) |
100A |
| Battery |
|
| Rated Voltage |
24VDC |
| Battery Type |
Lithium and Lead-acid |
| Interface & Monitoring |
|
| HMI |
LCD Display |
| Interface |
RS485 / RS232 / USB / Dry Contact |
| Monitoring |
WiFi (Optional) |
| General Data |
|
| Ingress Protection |
IP21 |
| Operating Temperature |
-10°C ~ 50°C |
| Relative Humidity |
5% ~ 95% (Non-condensing) |
| Storage Temperature |
-15°C ~ 60°C |
| Net Weight |
6.2kg |
| Dimensions (WHD) |
435×285×98mm |
| Max. Operating Altitude |
4000m (Derating above 1000m) |
