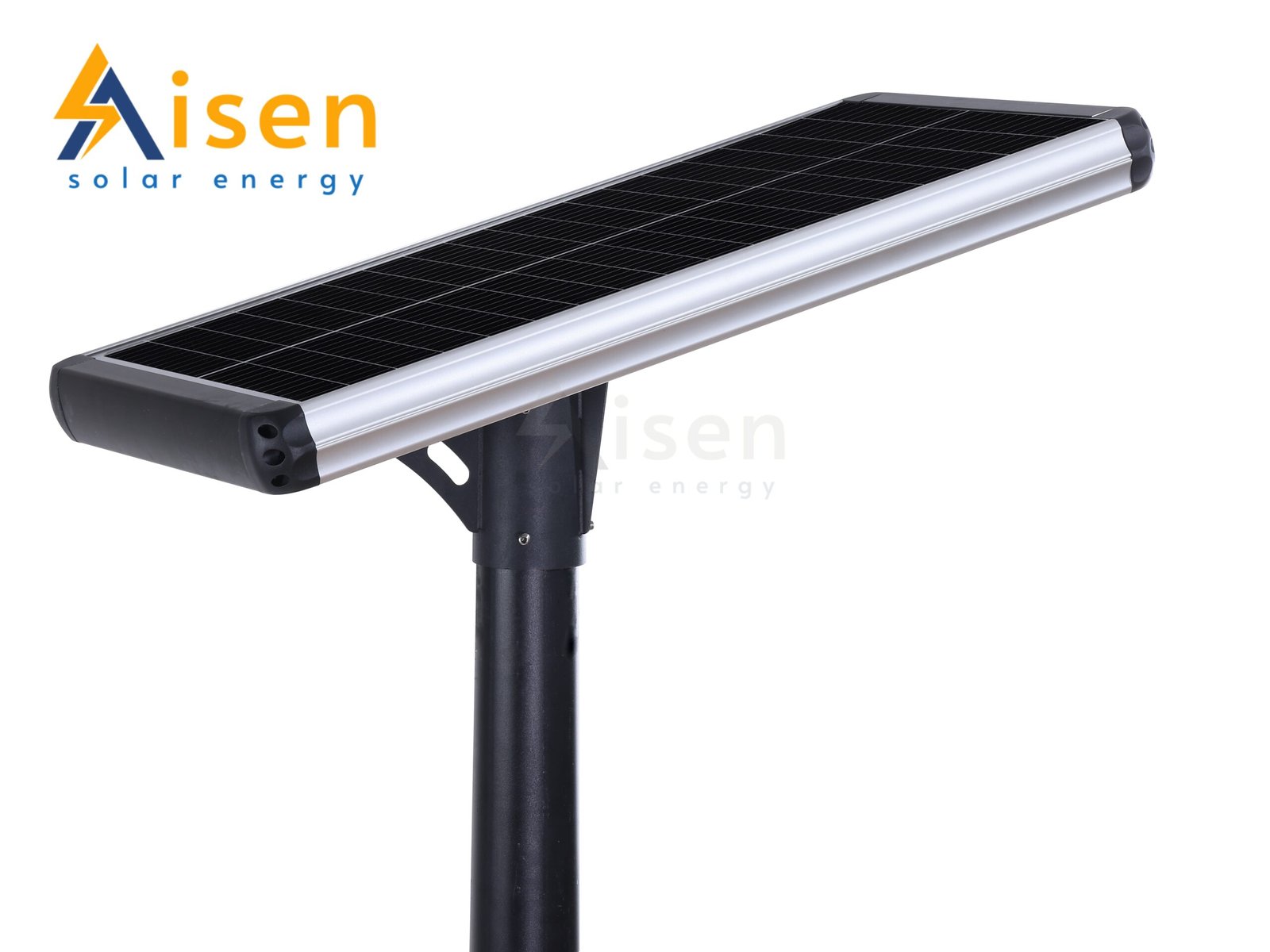

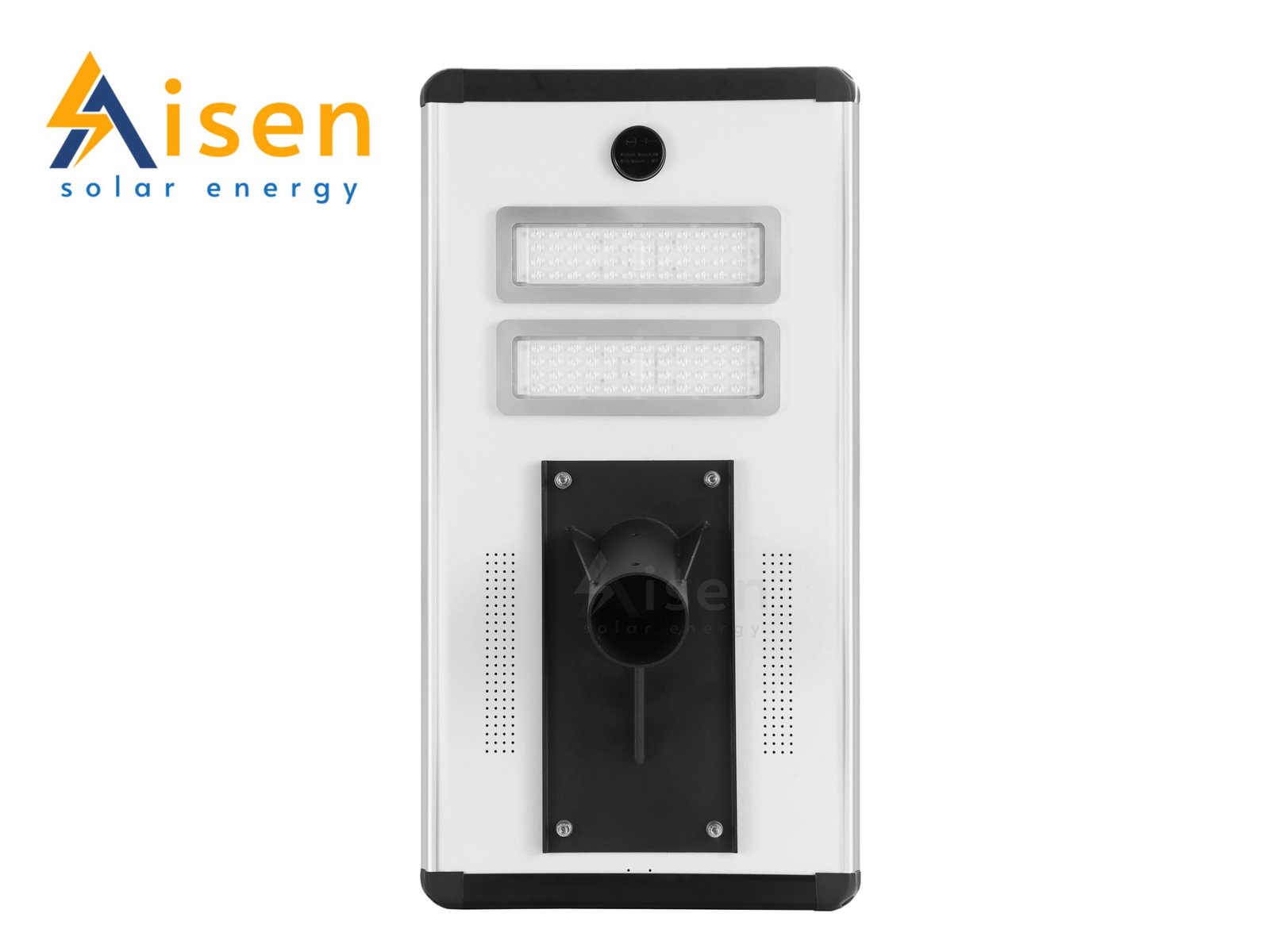

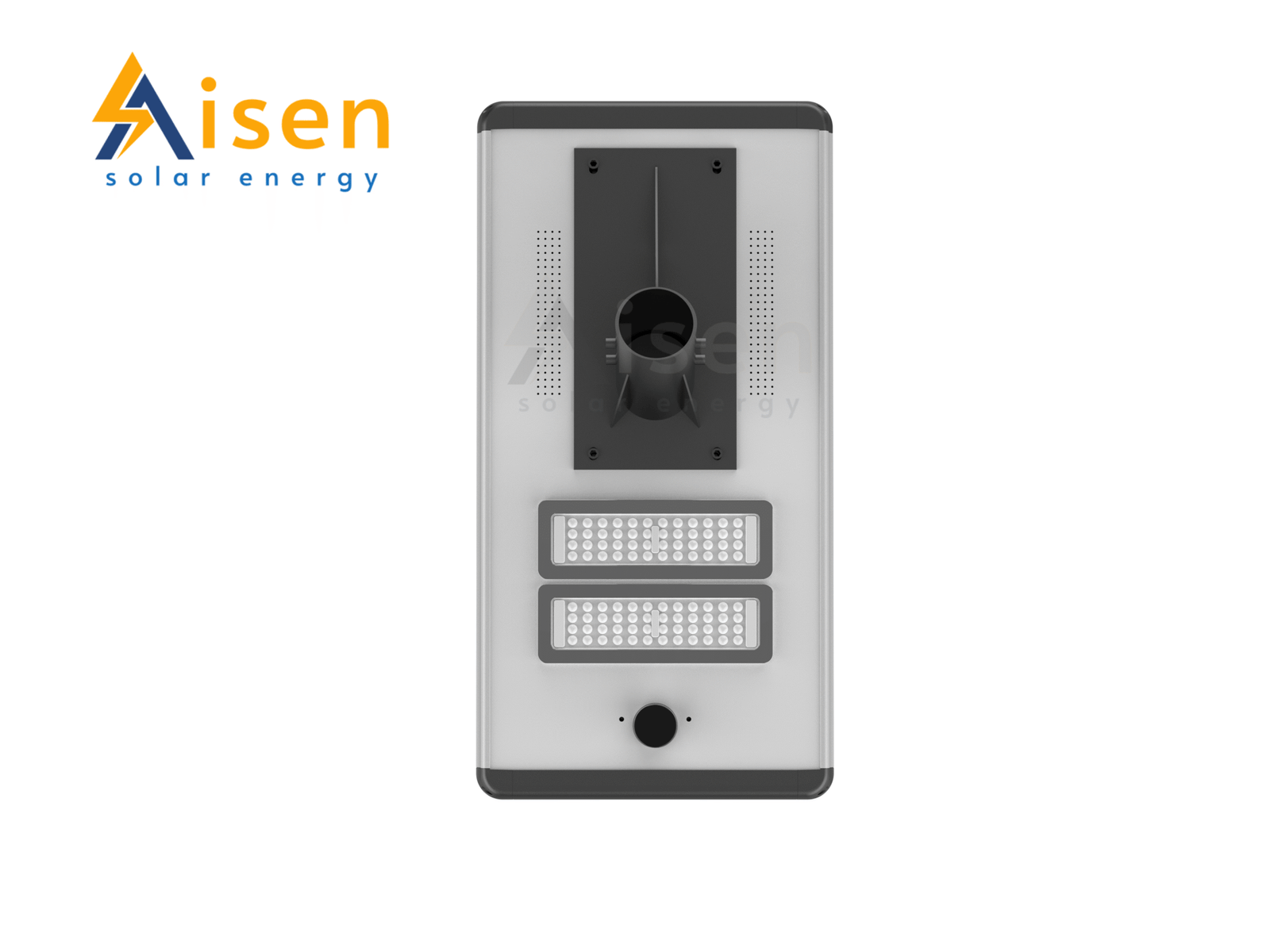

TG-40W All in one solar street light

Category

The TG-40W all-in-one solar street light is a compact, high-efficiency outdoor lighting solution, integrating a 60W monocrystalline solar panel, 12.8V 15Ah LiFePO₄ battery, and Bridgelux 3030 LED chips. It delivers reliable off-grid illumination for residential streets, small roads, and community areas, with intelligent MPPT control and long-lasting performance.

Description

integrated solar street light 40W Item NO.:TG-40W
Solar panel Max power 18V 60W(Imported High Efficiency Monocrystalline Silicon)
Life time 25years
Battery Type LifePO4 Battery(12.8V 15AH)
Life time 8-10 years
LED Lamp                                                                                                                                                (with sensor) Max power 12V40W
led chip brand 96PCS Bridgelux chips3030
lumen (LM) 170LM/W
Life time 60000hours
Viewing Angle 140°*70°
Charge time by sun 6hours(Strong sunshine)
working Temperature range( ℃ ) -25℃—+65℃
colour temperature range(k) 6000K-6500K(customized)
mounting height range (m) 5-6M
space between light range (m) 15-20M
Install Pole diameter 70-76mm
Cloudy/Rainy days 5-7Cloudy/Rainy days
Lamps material of main aluminium alloy
Motion sensor Yes(Microwave Sensor)
with remote control or not Yes(1pc remote control per lot)
Certificate CE / ROHS / IP65
warranty period 5years
