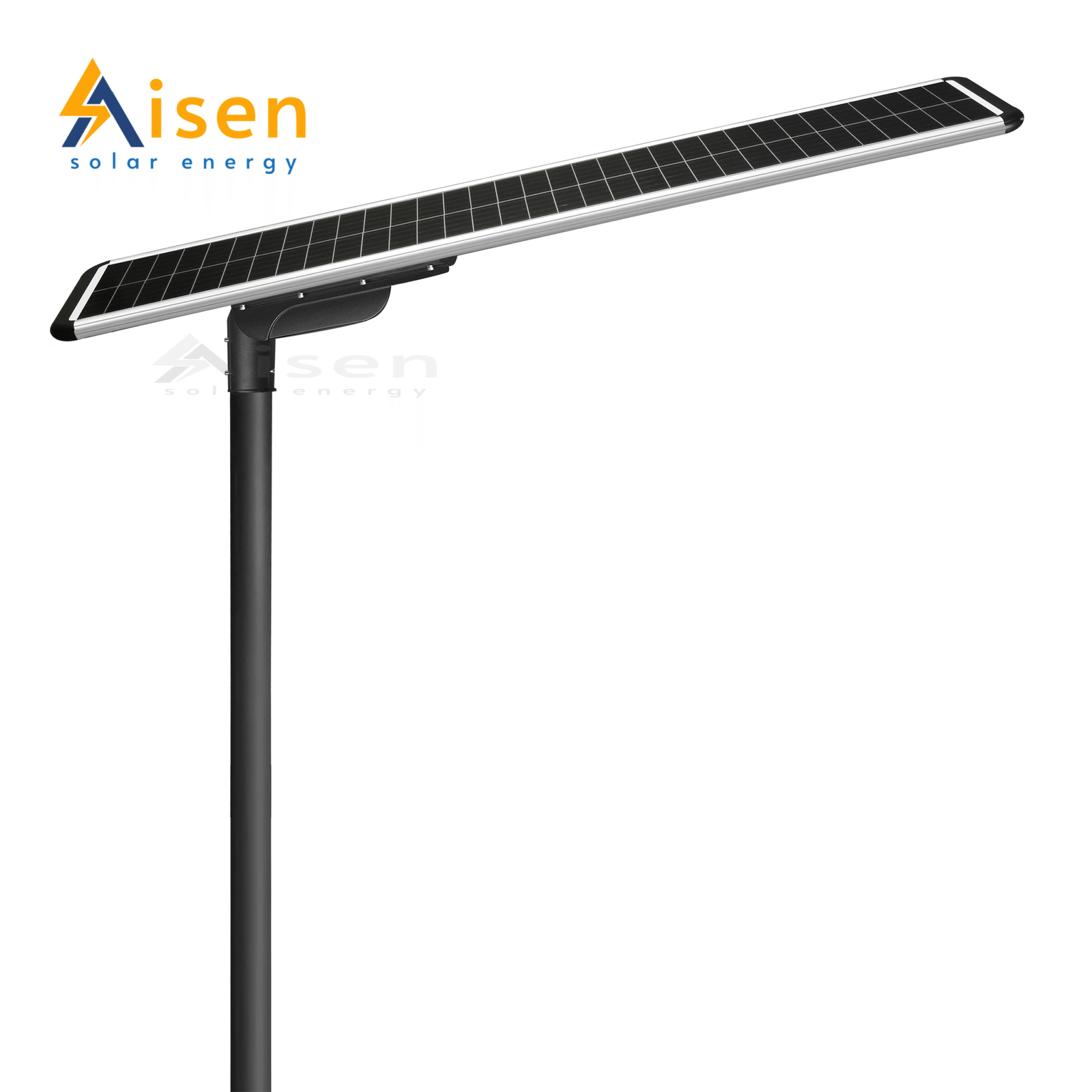

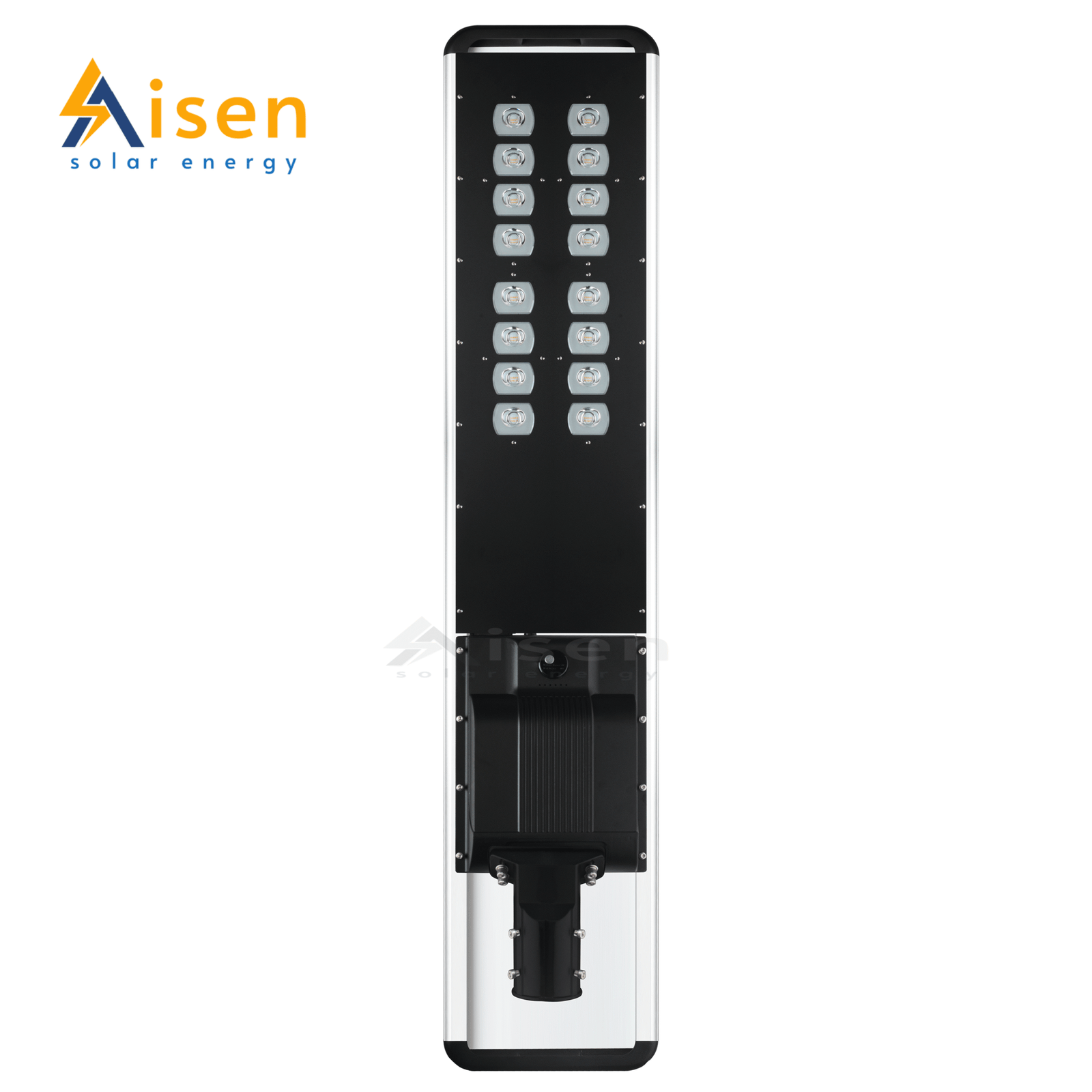

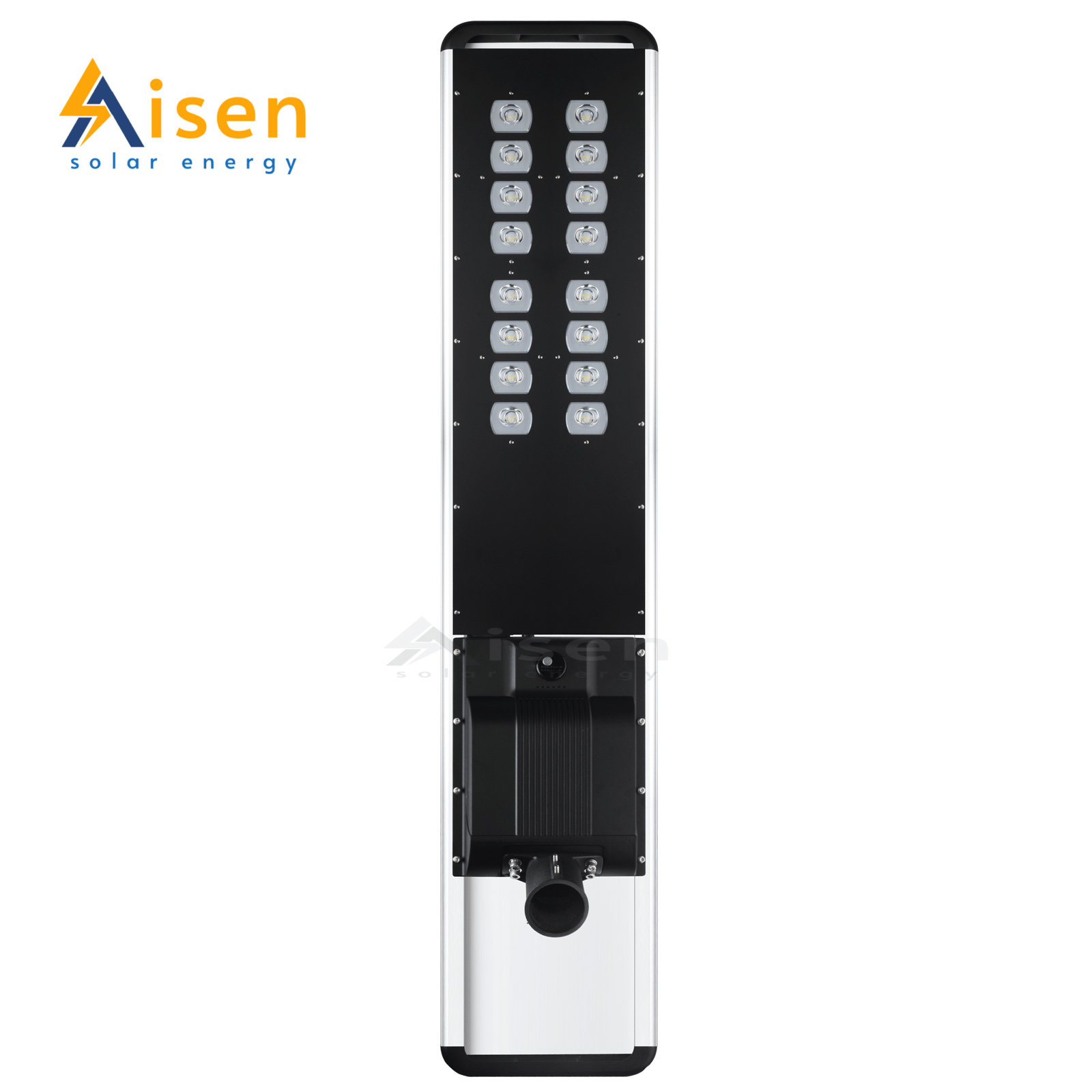

GZ-120W All in one solar street light

Category

The GZ-120W is the flagship all-in-one solar street light, designed for mega-projects and the most expansive outdoor spaces. It integrates a 120W LED system, 18V 140W solar panel, and 12.8V 60Ah battery, offering the highest power output in the series to ensure ultimate brightness, coverage, and reliability in extreme conditions.

Features

  • Industry-Leading Brightness: 3030 chips (288PCS) at 220LM/W, delivering maximum illumination for the broadest roads.
  • Maximized Battery Life: 12.8V 60Ah LiFePO₄ battery for the longest runtime and best performance in persistent cloudy weather.
  • Premium Solar Efficiency: 18V 140W monocrystalline panel for rapid charging and superior energy conversion.
  • Ultimate Smart Protection: Advanced BMS with soft/hard protection, temperature control, and remote monitoring for safe operation.
  • Industrial Heavy-Duty Build: IP66/IK09 rating and high-strength aluminum alloy built to last 25+ years.

Application

  • Major Highways & Motorways: Primary lighting for intercity highways and express routes.
  • Airport Runways & Aprons: Critical safety lighting for aviation facilities.
  • Large Industrial Zones & Ports: High-intensity lighting for sprawling logistics and maritime operations.
  • Large-Scale City Projects: Government infrastructure plans for mega-cities and new urban areas.

Packing details

Packing:
LED Lamp Packing Size:1940*100*450MM
Q’ty/ctn:1Set
G.W:12.5KG
Battery box packing size:630*380*150MM
Q’ty/ctn:1Set
G.W:10.3KG
Packs Containers:
20GP:230Sets
40GP:460Sets
40HP:550Sets

Warranty

5 years

Description

Features:
1..High class Integrated die-casting Aluminum alloy case .

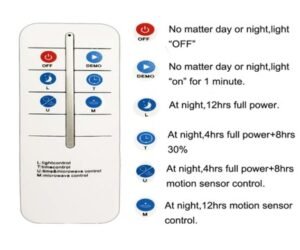

2.Lighting mode use intelligence radar senor,sensor long distance.
3.140° view angle,lighting more area.
4..Easy to install,maintance,Auto on/off
5.With remote control,UVA technology,bring high corrosion resistance,30m remote control operation,4 lighting mode.
LED 120WBridgelux chips3030(Life time 100000hours)
Lumen(LM) 170LM/W
Colour Tempreture 6000K ~6500K(it can be customized)
LifePO4 Battery 691.2WH 12.8V
Solar Panel 18V140WImported High Efficiency Monocrystalline Silicon
Install Pole diameter 70-76mm
Mounting Height 10~12m (Suggest install between space35-40m)
Solar Charging Time 6 hours by bright sunlight
Cloudy/Rainy days 12 Cloudy/Rainy days
Material High Class Aluminum
Product Size 1863*385*108mm
LED Lamp 288PCS
Motion sensor Yes(Microwave Sensor)
Remote Control Yes(1pc remote control per lot)
Waterproof IP66
Working Tempreture -25℃ to 65℃
Certificates CE、ROHS、IP66
Warranty 5Years
