Specification
| Led Source | TG-40W | TG-60W | TG-80W | TG-100W | TG-120W | TG-150W | TG-200W | TG-250W | TG-300W | TG-400W |
| Real set up power | 40W | 60W | 80W | 100W | 120W | 150W | 200W | 250W | 300W | 400W |
| Lumen | 170LM/W | |||||||||
| Color Temperature | 2700K-6500K，RA>70 | |||||||||
| Material | High-end aluminum alloy | |||||||||
| Mono Solar Panel | 18V 60W | 18V 80W | 18V 100W | 18V 130W | 18V 170W | 18V 200W | 36V 220W | 36V 270W | 36V 330W | 36V 430W |
| LifePO4 Battery | 12.8V 15AH | 12.8V 30AH | 12.8V 45H | 12.8V 45AH | 12.8V 60AH | 12.8V 75AH | 25.6V 45AH | 25.6V 60AH | 25.6V 75AH | 25.6V 90AH |
| LED | Bridgelux 3030 | |||||||||
| Waterproof IP grade | IP65 | |||||||||
| Working Time | Lighting 12 hours/day，support 5-7 rainy and cloudy days(with motion sensor) | Lighting 12 hours/day （without motion sensor） |
||||||||
| Charging Time | 6 hours(bright sunshine) | |||||||||
| Installation diameter | 70-76mm | 70-76mm | 70-76mm | 70-76mm | 70-76mm | 70-76mm | 70-76mm | 70-76mm | 70-76mm | 70-76mm |
| Product size(mm) | 785*410*60 | 940*410*60 | 1220*410*60 | 1675*410*60 | 1445*600*60 | 1615*600*60 | 1750*600*60 | 1580*780*60 | 1800*900*60 | 1795*1110*60 |
| Product weight(G.W) | 9.5KG | 11KG | 13KG | 20.3KG | 26KG | 29KG | 32.5KG | 38KG | 48KG | 58KG |
| Working temperature | -25℃－+65℃ | |||||||||
| Certificate | CE ROHS IP65 | |||||||||
| Warranty | 5 years | |||||||||
| Remote control | yes, provide 1pc per bulk order | |||||||||

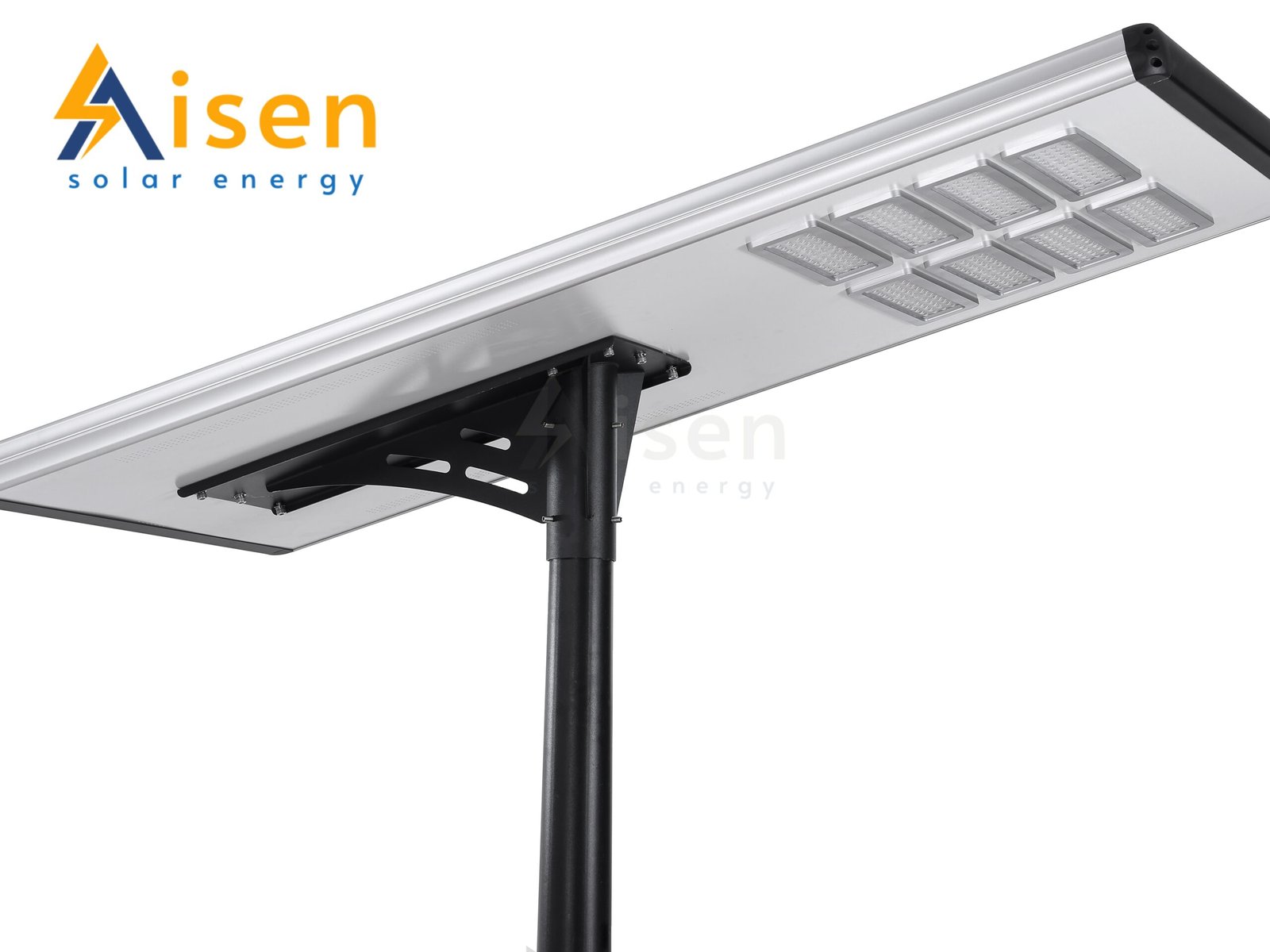

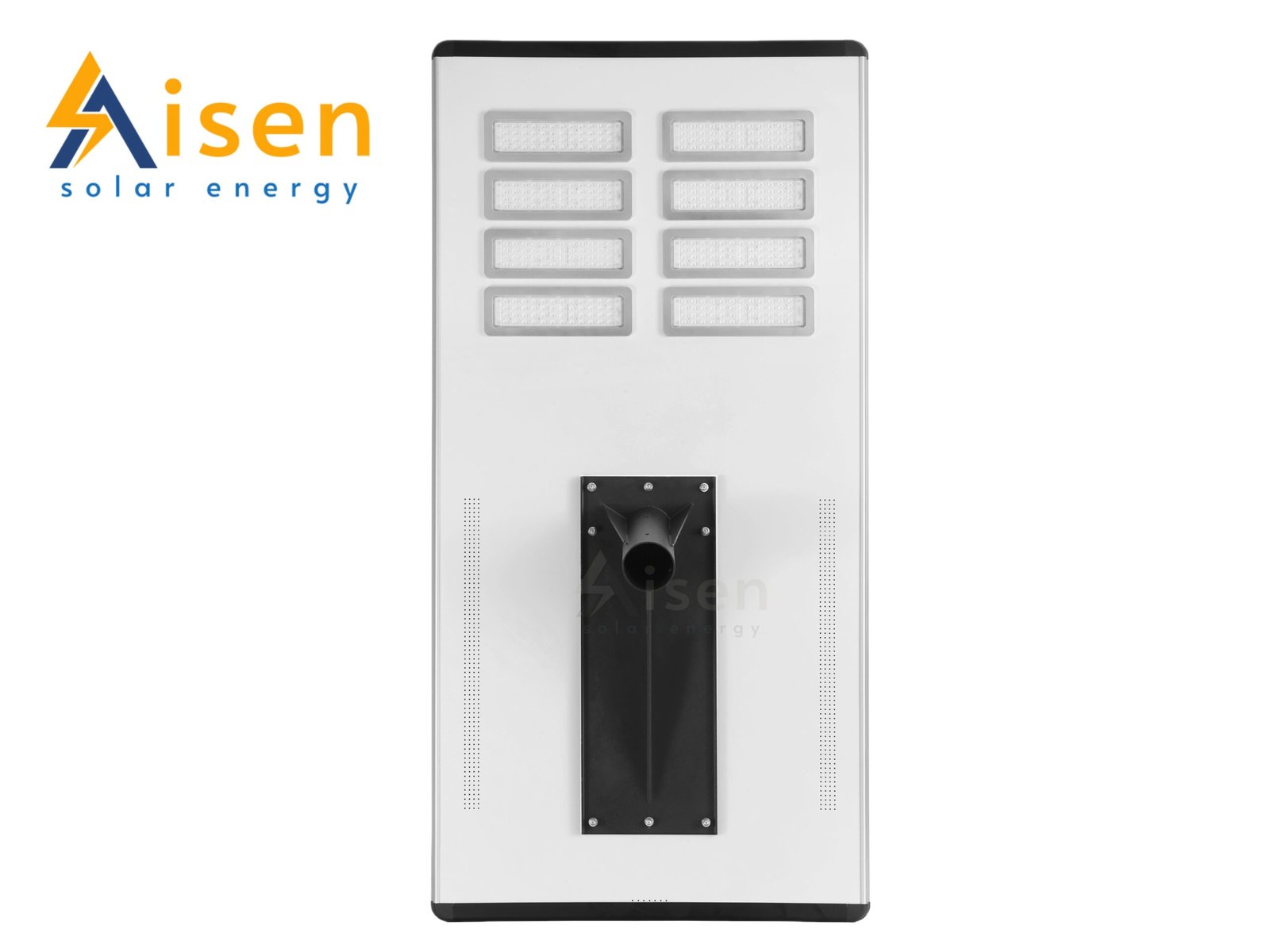

| integrated solar street light 250W | Item NO.：TG-250W | ||

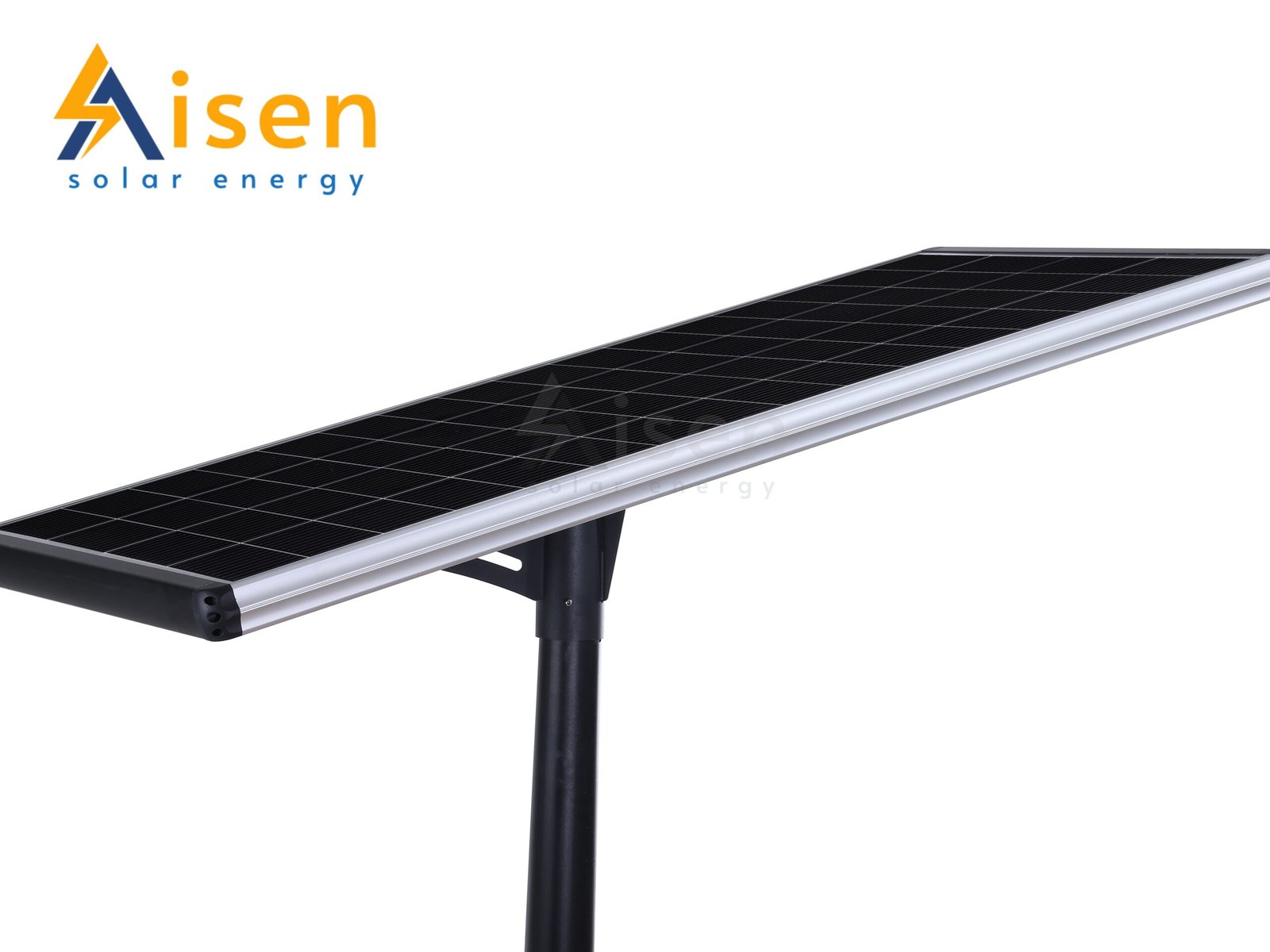

| Solar panel | Max power | 36V 270W(Imported High Efficiency Monocrystalline Silicon) | |
| Life time | 25years | ||
| Battery | Type | LifePO4 Battery(25.6V 60AH) | |
| Life time | 8-10 years | ||
| LED Lamp | Max power | 24V250W | |
| led chip brand | 384PCS Bridgelux chips3030 | ||
| lumen (LM) | 170LM/W | ||
| Life time | 60000hours | ||
| Viewing Angle | 140°*70° | ||
| Charge time | by sun | 6hours(Strong sunshine) | |
| working Temperature | range( ℃ ) | -25℃—+65℃ | |
| colour temperature | range(k) | 6000K-6500K(customized) | |
| mounting height | range (m) | 10-12M | |
| space between light | range (m) | 35-40M | |
| Install Pole diameter | 70-76mm | ||
| Cloudy/Rainy days | 5-7Cloudy/Rainy days | ||
| Lamps material of main | aluminium alloy | ||
| Motion sensor | No | ||
| with remote control or not | No | ||
| Certificate | CE / ROHS / IP65 | ||
| warranty period | 3years | ||
| Packing & Weight | Product size | 1580*780*60MM | |
| Net weight | 38KG | ||
| Gross weight | 42.5KG | ||
| Packing size | 1640*855*120MM/670*390*290MM | ||
| Qty/ctn | 1set/ctn | ||
| Packing | neutral | ||
| Packs Containers | 20GP | 115sets | |
| 40GP | 235sets | ||
| 40HC | 280sets | ||
