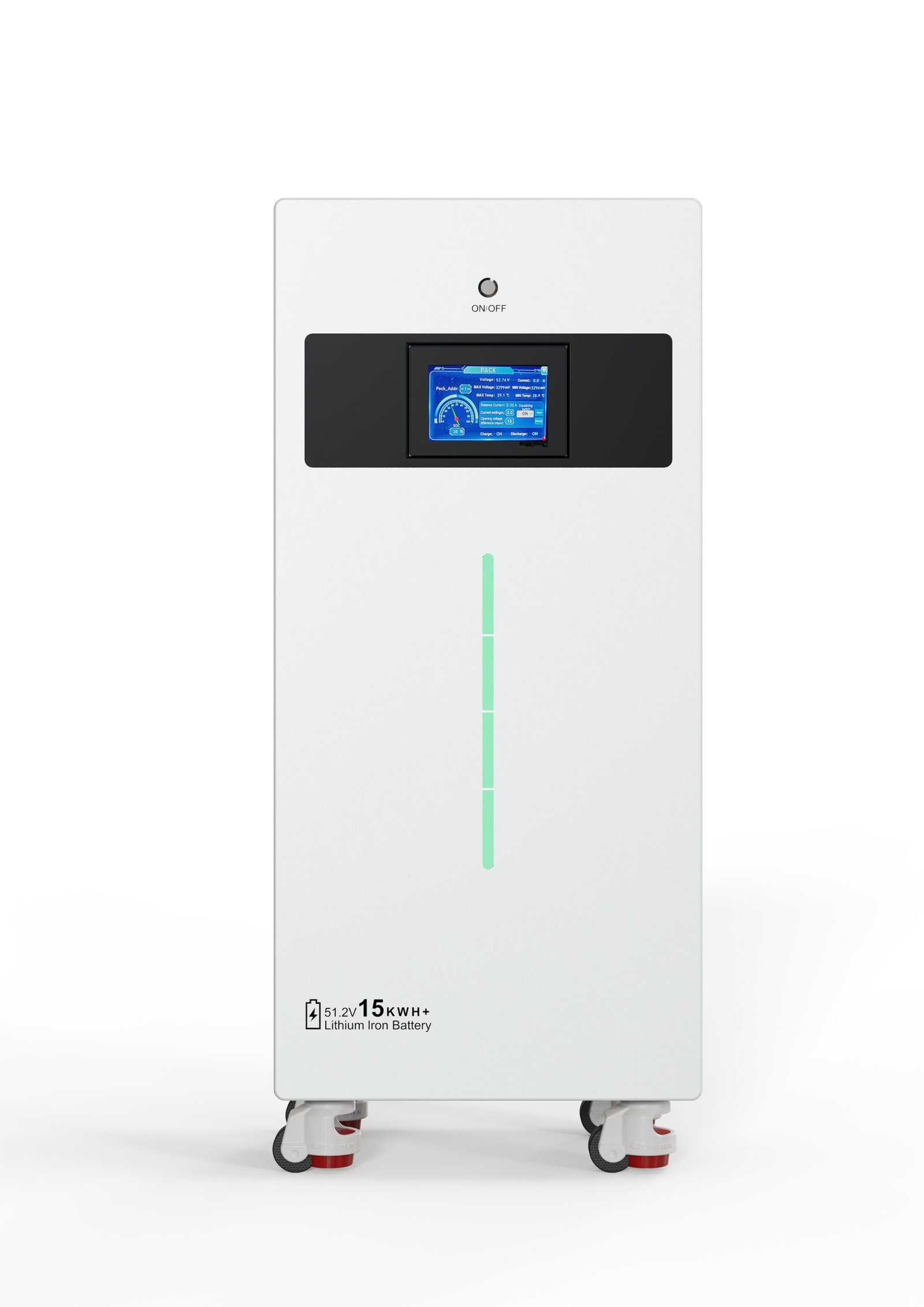

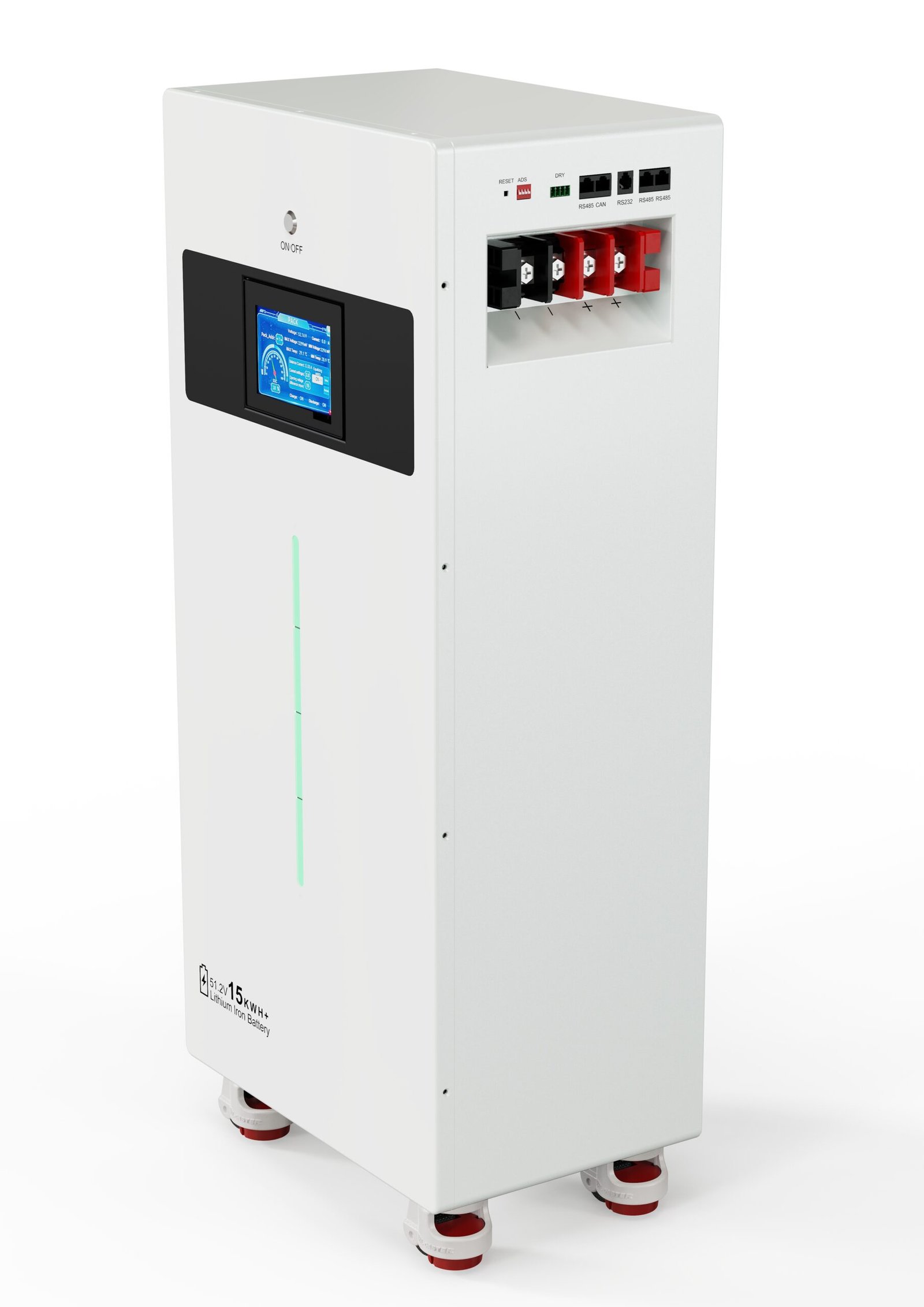

The SMART-48314 (Npro) is the pinnacle of the series, engineered for maximum energy independence. This 16kWh powerhouse (870*380*250mm) is designed for large homes, serious off-grid applications, or those seeking to eliminate their electricity bill. It combines massive storage capacity with the intelligent management and robust construction that defines the Npro line.
Flagship Features for Unmatched Demand:
Maximum Storage: With 16kWh of energy, it provides the largest single-unit capacity in the lineup, capable of powering entire homes for extended periods or storing vast amounts of solar energy.
Engineered for Heavy Cycling: Built around 314Ah high-quality LiFePO4 cells and a robust thermal design, it is engineered for reliability under continuous, high-throughput use.
Professional System Core: Its advanced BMS and communication suite make it the ideal central storage component for large-scale solar-plus-storage systems or sophisticated microgrids.
Industrial-Grade Design: The form factor and connectivity are designed for stability and ease of integration in permanent installations, offering a clean, professional aesthetic.
Technical Specifications:
Model: SMART-48314
Rated Energy: 16.08 kWh
Nominal Voltage: 51.2V
Max Continuous Current (Charge/Discharge): 200A
Cycle Life: >6,000 cycles @ 80% DoD
Dimensions (HWD): 870 * 380 * 250 mm
Communication: RS232, RS485, CAN
Protection Rating: IP43
Warranty: 5 Years
High Cycle Life: our battery boasts an impressive cycle life of over 6,000 times.
Wide Compatibility with Hybrid Inverters: our battery is compatible with a range of hybrid inverters, including PYLON, Goodwe, Growatt, Deye, Solis etc.
Wide Temperature Range: The battery can operate in a wide temperature range of -20°C to 60°C.
Compliance and Safety: The battery meets international safety standards, including CE, ROHS, MSDS, and UN38.3.
Typical Capacity: 300AH
Typical Voltage: 51.2V
Energy storage: 15360WH
Max. Charge Current: 200A
Max. Discharge Current: 200A
Standard Charge Current: 0.5C
Dimension: 815*455*350mm
Cooling: Nature
Communication: RS232, RS485, CAN
Certifications: CE, ROHS, UN38.3, MSDS
Warranty: 5 years
The SMART-48314 (Npro) is the pinnacle of the series, engineered for maximum energy independence. This 16kWh powerhouse (870*380*250mm) is designed for large homes, serious off-grid applications, or those seeking to eliminate their electricity bill. It combines massive storage capacity with the intelligent management and robust construction that defines the Npro line.
Flagship Features for Unmatched Demand:
Maximum Storage: With 16kWh of energy, it provides the largest single-unit capacity in the lineup, capable of powering entire homes for extended periods or storing vast amounts of solar energy.
Engineered for Heavy Cycling: Built around 314Ah high-quality LiFePO4 cells and a robust thermal design, it is engineered for reliability under continuous, high-throughput use.
Professional System Core: Its advanced BMS and communication suite make it the ideal central storage component for large-scale solar-plus-storage systems or sophisticated microgrids.
Industrial-Grade Design: The form factor and connectivity are designed for stability and ease of integration in permanent installations, offering a clean, professional aesthetic.
Technical Specifications:
Model: SMART-48314
Rated Energy: 16.08 kWh
Nominal Voltage: 51.2V
Max Continuous Current (Charge/Discharge): 200A
Cycle Life: >6,000 cycles @ 80% DoD
Dimensions (HWD): 870 * 380 * 250 mm
Communication: RS232, RS485, CAN
Protection Rating: IP43
Warranty: 5 Years
| Dimensions | 88 × 38 × 25 in |
|---|
