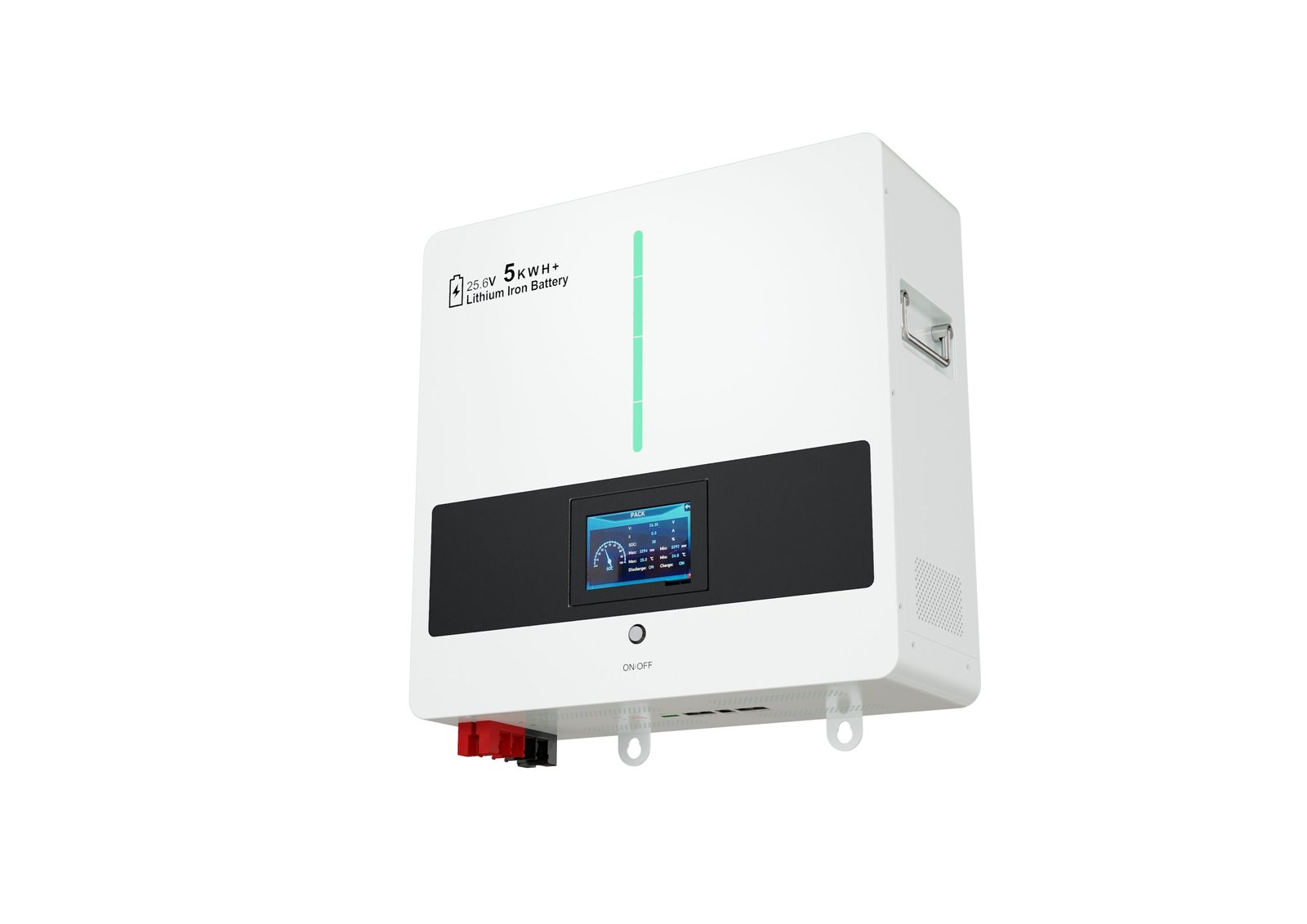

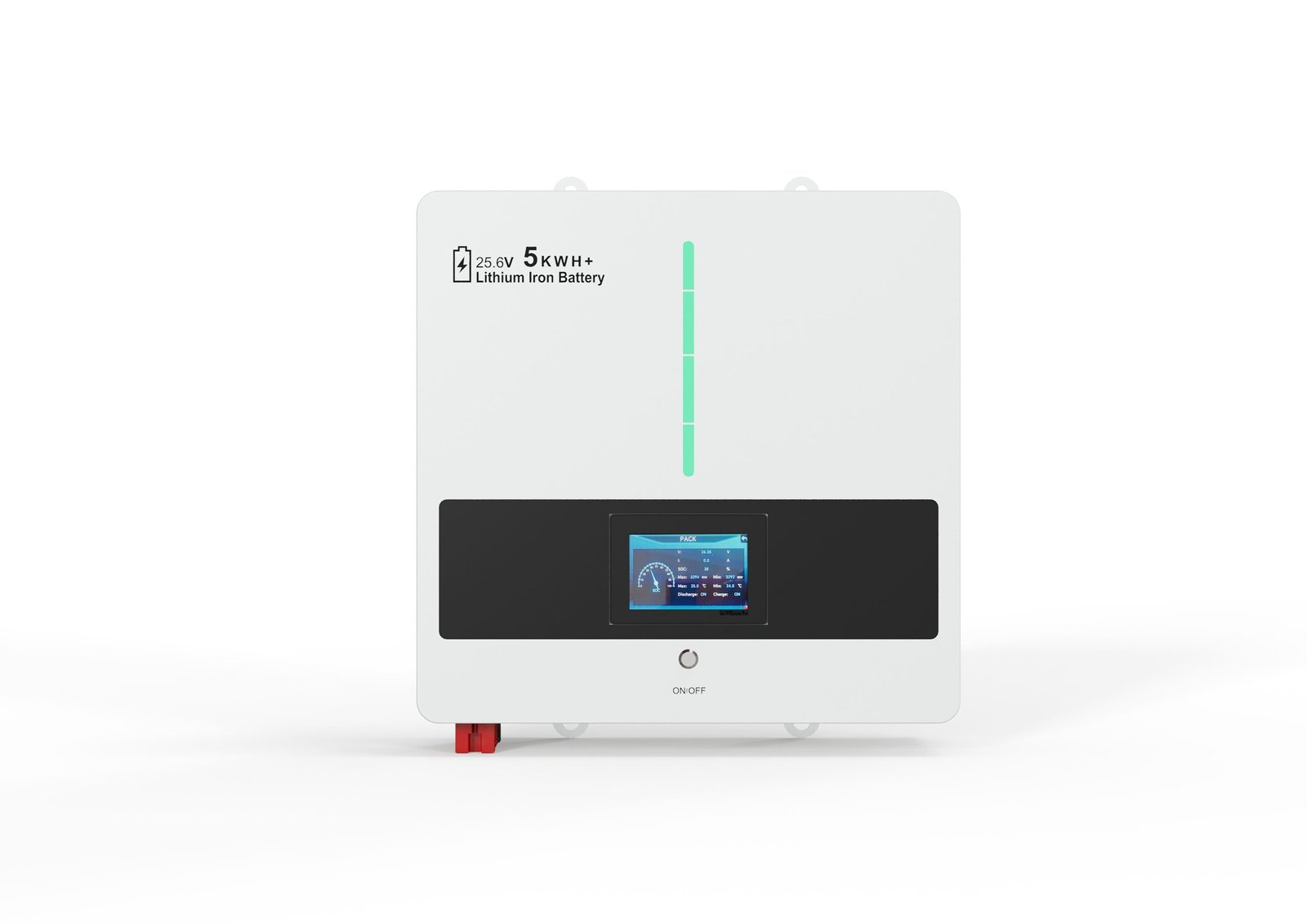

The SMAR-24200 (Npro) redefines compact energy storage. With its efficient upright design (485*475*182mm), this 5kWh LiFePO4 battery delivers maximum power in a minimal footprint, perfect for spaces where every inch counts. It combines professional-grade performance with the intuitive control of the Npro series’ touchscreen interface.
Engineered for Reliability & Easy Integration:
Robust Performance: Operates flawlessly in a wide temperature range (-20°C to +60°C discharge), ensuring reliability in diverse climates. Its high 200A max charge/discharge current supports rapid energy cycling.
Plug-and-Play Compatibility: Equipped with RS232, RS485, and CAN communication, it seamlessly integrates with a vast ecosystem of energy storage inverters for a hassle-free setup.
Smart & Safe: The integrated smart BMS with <8% SOC accuracy provides precise monitoring and protection. Certified to CE, ROHS, UN38.3, and MSDS standards for guaranteed safety.
Ready to Grow: While powerful as a standalone unit, its design supports parallel connection, allowing your system capacity to grow alongside your energy needs.
Technical Specifications:
Model: SMAR-24200
Rated Energy: 5.12 kWh
Nominal Voltage: 25.6V
Max Continuous Current (Charge/Discharge): 200A
Cycle Life: >6,000 cycles @ 80% DoD
Dimensions (HWD): 485 * 475 * 182 mm
Weight: ~45 kg
Communication: RS232, RS485, CAN
Protection Rating: IP43
Warranty: 5 Years
High Cycle Life: our battery boasts an impressive cycle life of over 6,000 times.
Wide Compatibility with Hybrid Inverters: our battery is compatible with a range of hybrid inverters, including PYLON, Goodwe, Growatt, Deye, Solis etc.
Wide Temperature Range: The battery can operate in a wide temperature range of -20°C to 60°C.
Compliance and Safety: The battery meets international safety standards, including CE, ROHS, MSDS, and UN38.3.
Typical Capacity: 200AH
Typical Voltage: 25.6V
Energy storage: 5120WH
Max. Charge Current: 150A
Max. Discharge Current: 150A
Standard Charge Current: 0.5C
Dimension: 485*475*180mm
Cooling: Nature
Communication: RS232, RS485, CAN
Certifications: CE, ROHS, UN38.3, MSDS
Warranty: 5 years
packaging:546*521*256mm
G.W/Pcs:50kg
Engineered for Reliability & Easy Integration:
Robust Performance: Operates flawlessly in a wide temperature range (-20°C to +60°C discharge), ensuring reliability in diverse climates. Its high 200A max charge/discharge current supports rapid energy cycling.
Plug-and-Play Compatibility: Equipped with RS232, RS485, and CAN communication, it seamlessly integrates with a vast ecosystem of energy storage inverters for a hassle-free setup.
Smart & Safe: The integrated smart BMS with <8% SOC accuracy provides precise monitoring and protection. Certified to CE, ROHS, UN38.3, and MSDS standards for guaranteed safety.
Ready to Grow: While powerful as a standalone unit, its design supports parallel connection, allowing your system capacity to grow alongside your energy needs.
Technical Specifications:
Model: SMAR-24200
Rated Energy: 5.12 kWh
Nominal Voltage: 25.6V
Max Continuous Current (Charge/Discharge): 200A
Cycle Life: >6,000 cycles @ 80% DoD
Dimensions (HWD): 485 * 475 * 182 mm
Weight: ~45 kg
Communication: RS232, RS485, CAN
Protection Rating: IP43
Warranty: 5 Years
| Weight | 51 lbs |
|---|---|
| Dimensions | 48 × 41 × 34 in |
Here is the Solar Energy Solution provder, contact us for your needs and get a free quote, we will reply within 1 work-day
